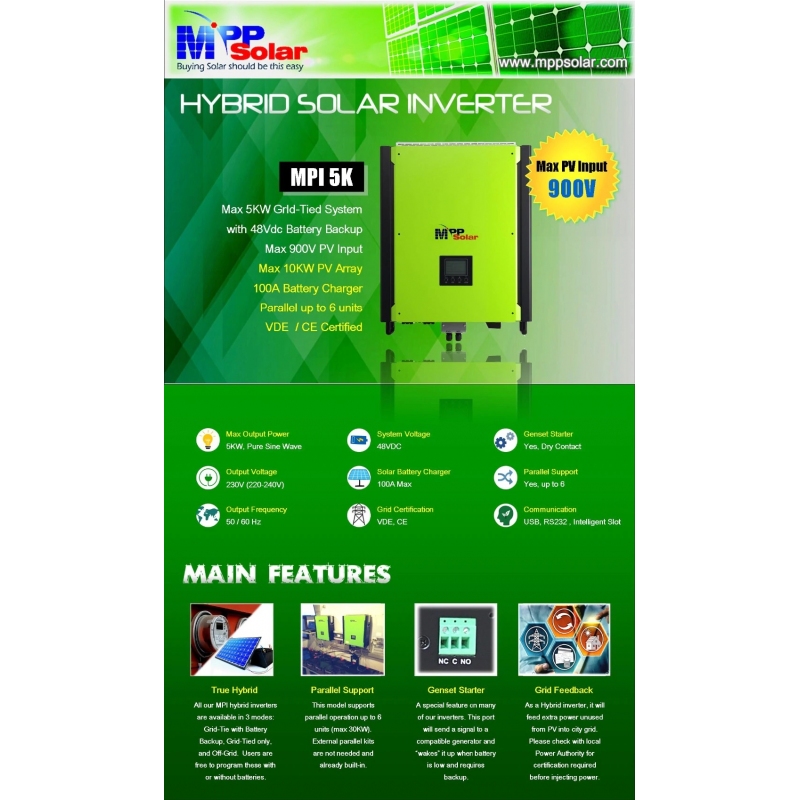

Invertor Solar hibrid On Grid+Off-Grid , pentru panouri solare fotovoltaice

MODEL

5KW

RATED POWER

5000 W

PV INPUT (DC)

Maximum DC Power

10000 W

Nominal DC Voltage

720 VDC

Maximum DC Voltage

900 VDC

Working DC Voltage Range

200 VDC ~ 900 VDC

Start-up Voltage / Initial Feeding Voltage

250 VDC / 300 VDC

MPP Voltage Range

250 VDC ~ 850 VDC

Full Load MPP Voltage Range

500 VDC ~ 850 VDC

Maximum Input Current

2*10 A

Isc PV (absolute maximum)

25 A

Max. inverter back feed current to the array

0 A

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC

Output Voltage Range

184 - 265 VAC

Output Frequency Range

47.5 ~ 51.5 Hz or 59.3~ 60.5Hz

Nominal Output Current

21.8 A per phase

Inrush Current/Duration

25 A / 20ms

Maximum Output Fault Current/Duration

65 A / 1ms

Maximum output Overcurrent Protection

65 A

Power Factor Range

0.9 lead – 0.9 lag

AC INPUT

AC Start-up Voltage

120-140 VAC

Auto Restart Voltage

180 VAC

Acceptable Input Voltage Range

170 - 280 VAC

Nominal Frequency

50 Hz / 60 Hz

AC Input Power

5000VA/5000W

Maximum AC Input Current

40 A

Inrush Input Current

40 A / 1ms

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC

Output Frequency

50 Hz / 60 Hz (auto sensing)

Output Waveform

Pure sine wave

Output Power

5000VA/5000W

Efficiency (DC to AC)

91%

BATTERY & CHARGER (Lead-acid/Li-ion)

DC Voltage Range

40 – 60 VDC

Nominal DC Voltage

48 VDC

Maximum Battery Discharging Current

138A

Maximum Charging Current

100 A

GENERAL

PHYSICAL

Dimension, D X W X H (mm)

600X460X204.2

Net Weight (kgs)

29

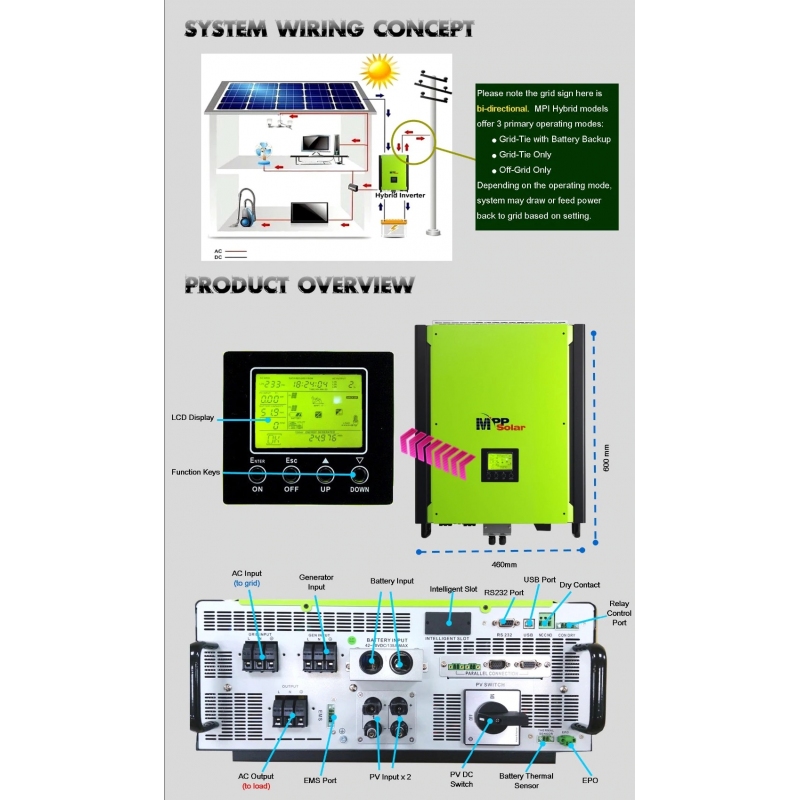

INTERACE

Communication Port

RS-232/USB

Intelligent Slot

Optional SNMP, Modbus and AS-400 cards

available

ENVIRONMENT

Protective Class

I

Ingress Protection Rating

IP20

Humidity

0 ~ 90% RH (No condensing)

Operating Temperature

-10 to 55°C (Power derating above 50°C)

Altitude

Max. 2000m*
